Automatic Hot Melt Glue Labeling Machine-Bopp Labeler

Product View

Blenzor Machine

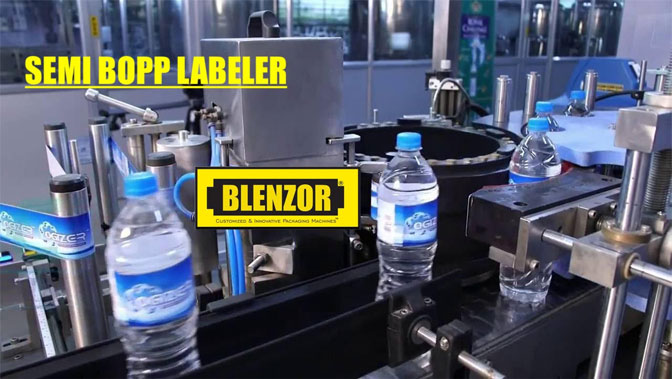

Product Video

Product Description

TECHNICAL DETAILS

MODEL NO.SLM

Suitable for

300ml-1500mm PET Bottles

Max Label Size

Bottle Dia.35mm-115mm

Label Length-78mm-242mm

Label Height-25mm-205mm

Labeling

Servo Motor Driven

Conveyor

2 Meter Long

Labeler

BOPP

Conveyor Drive

0.5HP Bonfiglioli-Italy/VFD

Power Source

220V 50Hz

Power Supply

10KW

Air

6Kg/cm2

Contact Parts

Stainless Steel 304 Grade

Covers

Stainless Steel

Machine Weight

1500Kg

Machine Dimension

2000mmLx600mmWx 1200mmH

Packing

Wooden Case

Production Capacity

60-90 Bottles Per Minute

BLENZOR-TM Introduces new model in BOPP labelling for round bottles

Fully automatic linear operation for 200ml - 2000ml bottles.(with certain change of parts).

Maximum production speed of 60 bottles/min.

Machine is built fully in Stainless Steel.

Height adjustments to suit various bottle sizes.

Imported gluing unit sprays minimal quantity of hot melt adhesive (very minimal wastage).

No cleaning of the nozzle or glue unit, before production (less maintenance & saves time).

Minimal change-over time, to shift from one size to an another size of the bottle.

Fitted with PLC control

The machine is suitable to work cylindrical or shaped containers made of plastic, glass or metal with wrap-around labels.

Product Features

Durable and compact design, the machine frame is covered by stainless steel sheet, anti-vibration and noise absorbing construction.

Rotary motor driven machine design

Control cabinet integrated in the machine housing

Hot melt dispensing spray guns , Non-contact labeling system

Cutter is easy adjustment and replacement, cutting at any speed with precision

Vacuum drum is synchronized with platform rotation, driven by servo motor (Allen Bradley brand)

Label web tracking for correcting its height and guarantee the consistent position

Auto splicing system for continuous operation

Application

Widely used for labeling round bottles of soft drink &mineral water using BOPP labels

Bottle Sizes

200ml-1.5Lit

Drive

Servo/Stepper Motor

Air Consumption

5Kg

Max Production Capacity

60 Bottles Per Minute

Power

380V,3 Phase,50Hz/2KW
