Liquor Filling Machine

Automatic Liquid Filler

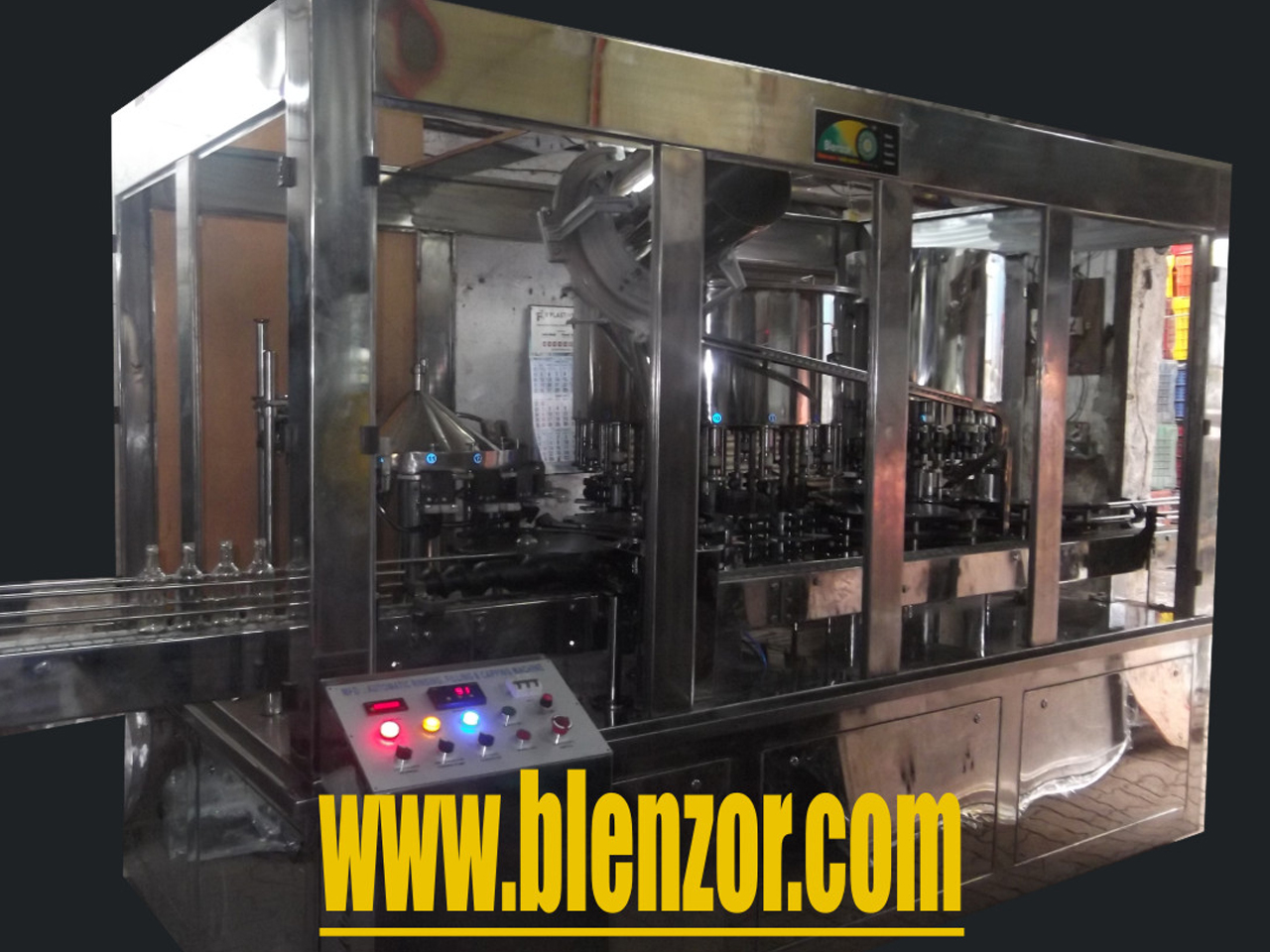

  BLENZOR TM introduces its 3-In-1 Rotary Rinsing-Filling-Capping Machine for Liquor Filling Industries.
  Specification :

  • Material Stainless Steel 304
  • No leak,no drop, no waste
  • Accurate filling
  • Detachable Control Panel (Micro-Processor)
  3 in1 alcohol filling machine, integrating with washing, filling and capping, it realizes full automation in the whole process, suitable for glass bottle and aluminum anti-theft cap filling of wine, grape wine and sauce.

In this Liquor Filling Machine, The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new negative pressure filling way. Compared with the machines of the same specification, the productivity and benefit of this machine is more larger.

This Liquor Filling Machine adopts advanced Micro-Processed Controller . The input bottle chain adopts speed control by frequency variation; the output bottle chain adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.

The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation.

  Technical Parameters :

MODEL BLENZOR TM-GRAVIFILL-90
Series-3 In 1 Rinsing-Filling-Capping Machine
APPLICATION Wine, Liquor , Alcohol drinks, Vodka , Whisky,Vinegar etc
BOTTLES 180ml to 2Lit (Round,Square/Flat )
Glass/PET
Diameter-30mm-108mm
Height-170mm-340mm
CAPS ROPP SHORT NECK/ ROPP LONG NECK/ CROWN CAPS/PLASTIC CAPS/TWIST-OFF CAPS ETC.
HEADS WASH-FILL-CAP 16-16-8
DIMENSION 3200mmL x 1800mmW x 2200mmH
WEIGHT 2000Kg
PRODUCTION SPEED 90 Bottles Per Minute (5000-6000 Bottles Per Hour)
CERTIFICATES CE/ISO
CONTROLER DETACHABLE PANEL
POWER 415V/3PHASE/50Hz / 7.5HP
Bottles Cappers Controller
Fillers Rinser
Samples Whisky Application

Cap Feeder Covers
