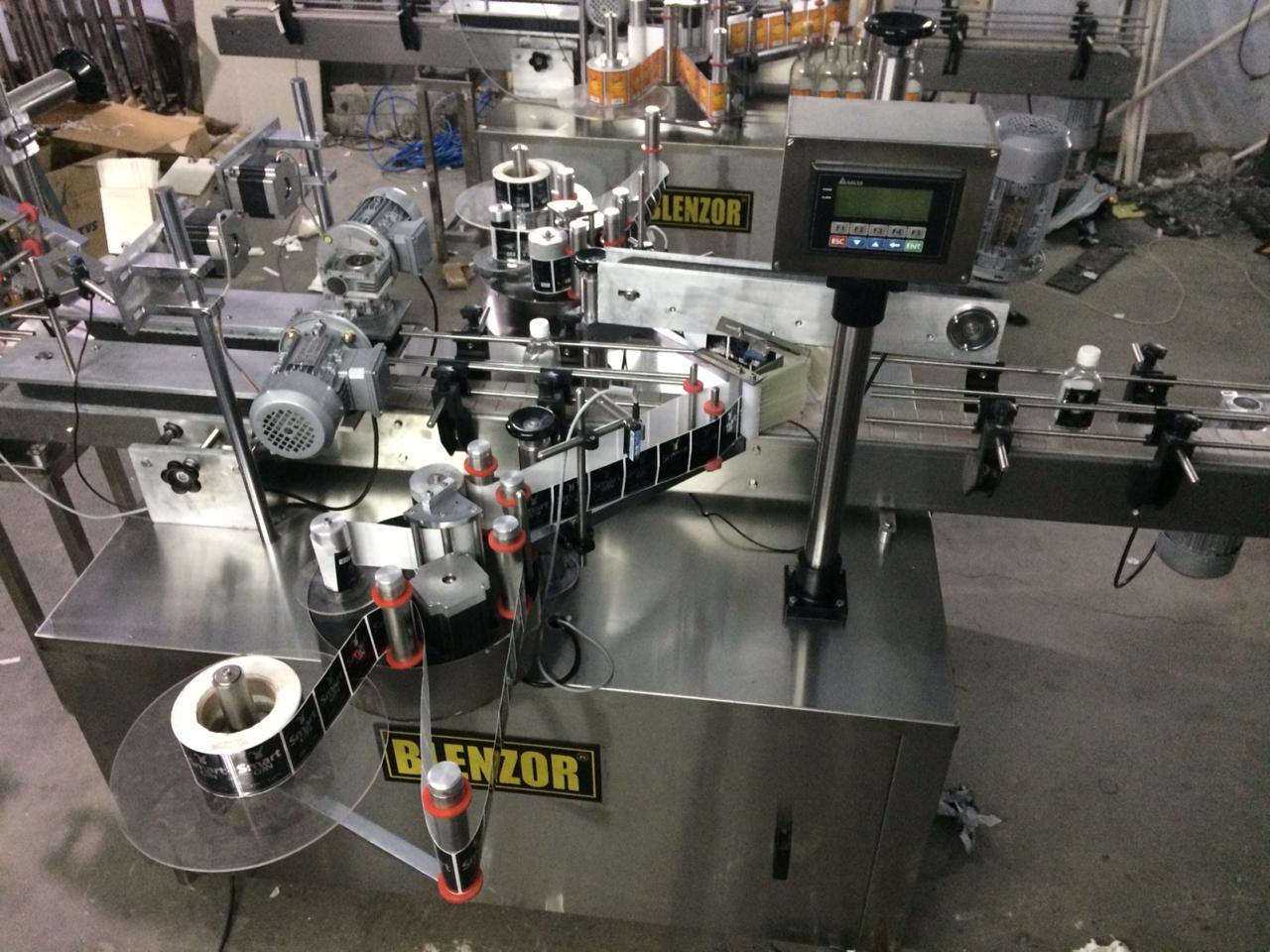

Sticker Labeling Machine




Suitable for

Round/Flat Bottles

Max Bottle Dia


Max Bottle Height



Stepper Motor Driven


2 Meter Long


Roll Formed Sticker Wrap Arround

Conveyor Drive

0.5HP Bonfiglioli-Italy/VFD

Power Source

220V 50Hz

Power Supply


Contact Parts

Stainless Steel 304 Grade


Stainless Steel

Machine Weight


Machine Dimension

20000mmLx1000mmWx 1800mmH


Wooden Case

Production Capacity

40-50 Bottles Per Minute


Label applicator , also known as sticker labelling machine is widely used for applying the labels on bottles.

Label applicator is majorly applicable for round bottle labelling, flat bottle labelling, in wine bottles, food bottles, juice bottles

Single side labelling, round bottle labelling, double side labelling can be done on same machine.

Label applicator is accurate label applying equipement.

 Sticker Labeling machine  is perfect label applicator for applying self adhesive labelling on bottles.

Glass bottle labelling can be accurately managed by  labelling machine or label applicator

Bottle Labeling machine can be used for any type of bottles.

Automatic Sticker Labeling Machine  is Wrap Around/Single/Double Side Labeling Machine is suitable for many variety of bottle labeling When labeling, the bottle will automatically rotate to allow the labeling device to the apply pressure for labeling. Automatic Sticker Labeling Machine is suitable for medicine, food, beverage, and chemical industries. Can be used for plastic, glass, metal and other round containers/bottles. With its innovative design, sticker labeling machine operation is so simple that even a primitive man can use.

• Match cG.M.P standard. Suitable for pharmaceutical and all other industries.
• Material uses Frame and main components are made from SS304 stainless steel and anodized aluminum.
• Suitable for a large of product size. Can label various kinds of products.
• Prompt window is show automatically when wrong operation.
• User-friendly display that everyone can operate without engineer.
• Values of control was using well-know unit (mm sec and etc.) Not unknown unit.
• Label Applicator uses 5-phase stepper motor that accurate and stability. Could use the Label Reel up to diameter    380mm. The Reminder not changes friction-pad that brings hide dust.
• Auto-teach the label sensor.
• Auto-set the label length.
•  Auto-set the label timing.
•  Hot Stamp Printer (stand optional) could prep-print date/batch code on the label.
•  The print direction could turn 90 without squander foil. The print position could adjustment, and the adjustment area     of print position was large that was 300mm × 150mm.
•  The machine would stop labeling and alarm automatically when non-foil.
• More specific devices/functions could be optional for production line, such as inspector, Rejecter, Container Flipper,    90 Degree Card Turner, Barcode Reader, CCD Camera and etc.

Technical data:

Labeling Head Motor          5-Phase Stepper Motor.      Product Diameter             20mm ~100mm
Label Length                         15~320mm              Label Height         15~155mm
Spool Inner                            (Dia) 76mm            Spool Outer           (Dia) 380mm Max
Voltage Supply                  AC 110/220V 50/60Hz, 1 phase          Weight   160kgs
Dimension                         (L)2010mm X (W)1200mm X (H)1300mm


Label Roller
Label Roller

Front Covering
Front Covering

Label Roll Sensor Unit
Label Roll Sensor Unit

Bottle Outfeed Conveyor
Bottle Outfeed Conveyor

Sticker Labeling Machine

Sticker Labeling Machine

Flat Bottle Labeler

Flat Bottle Labeler

Side Labeler
Side Labeler
Semi Automatic Tube Filling Machine
Semi Automatic Tube Filling Machine
Sticker Labeling Machine
