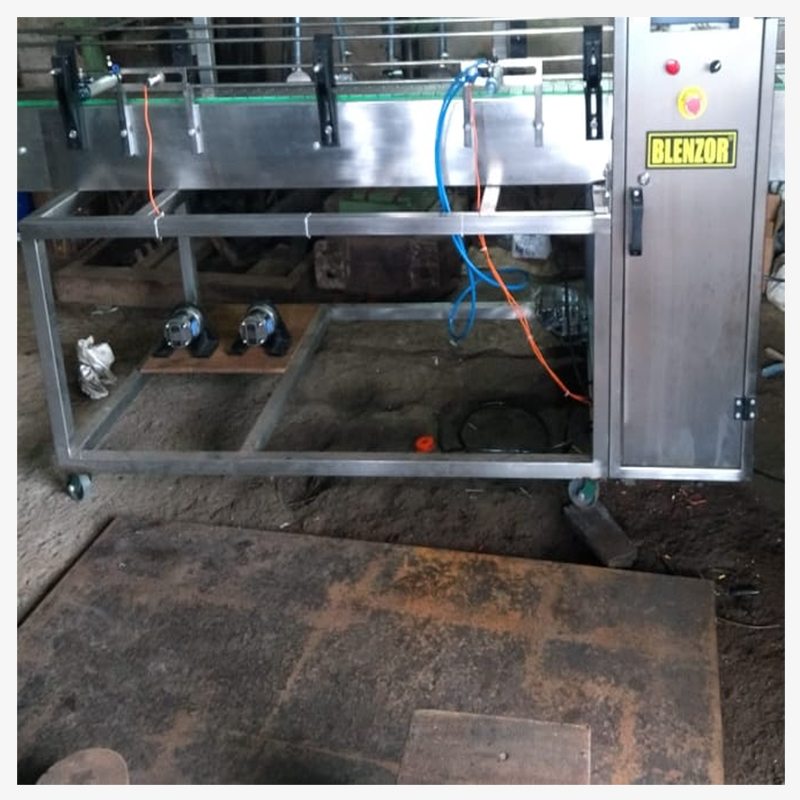

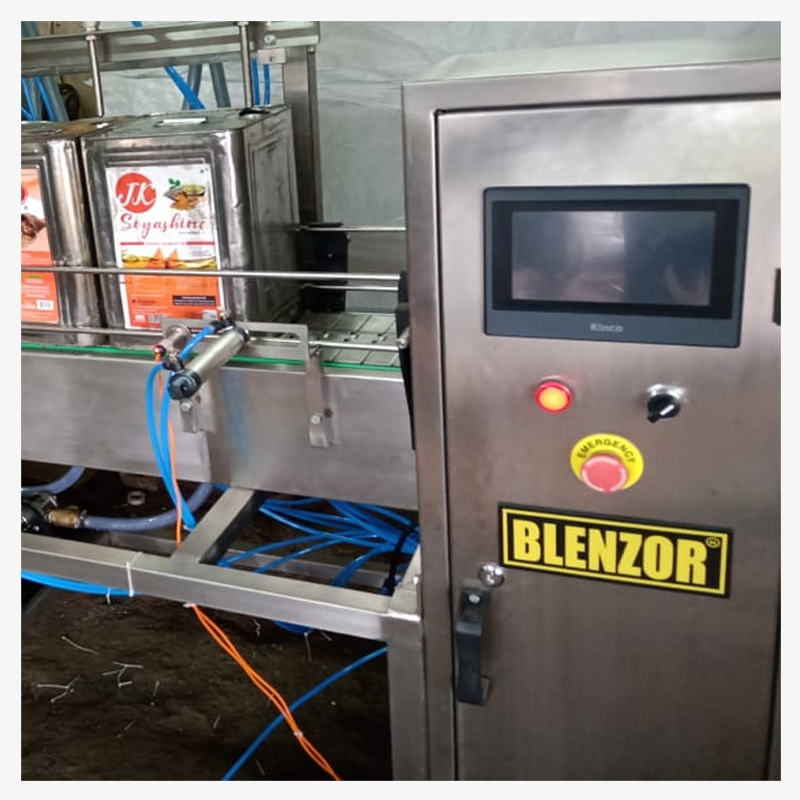

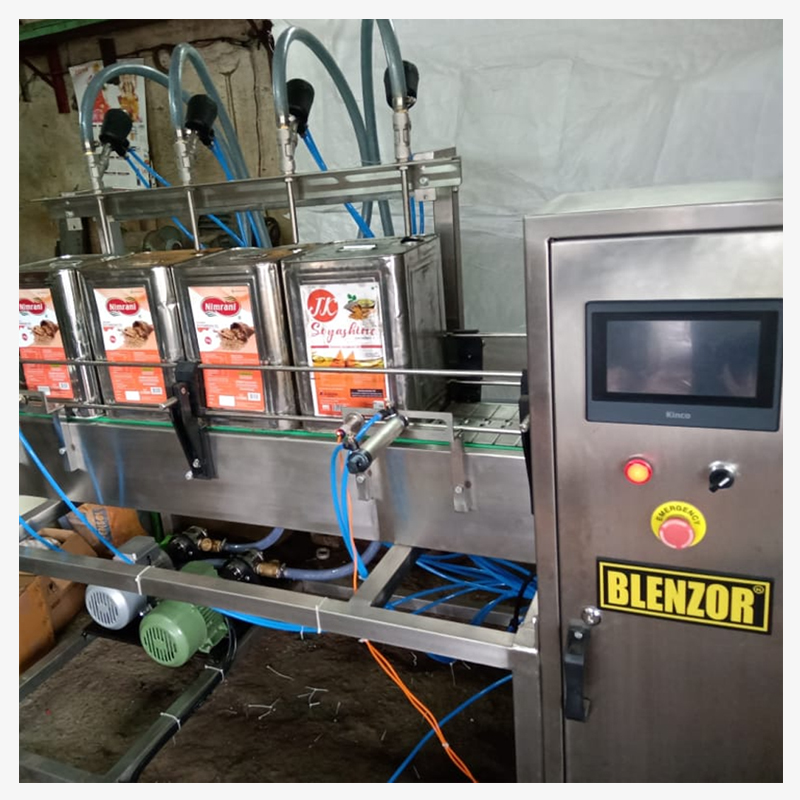

4 Head 15Kg Oil Tin Packing Machine
BLENZOR’s 4 Head 15Kg Oil Tin Packing Machine is ideal for all types of industrial mass production. 4 Head 15Kg Oil Tin Packing Machine is useful for wide range product packing application. The structure of 4 Head 15Kg Oil Tin Packing Machine is made from strong Stainless Steel fabrication base. Multiple sizes can be packed 4 Head 15Kg Oil Tin Packing Machine with help of change over parts.
Product Video
Product Description
TECHNICAL DETAILS
MODEL NO. TFM-2000
Suitable for-: Ghee/Oil
Filling Range-: 5Kg-15Kg
Filler-: 4 Head Digital Filler
Sealing-: Online (Manual Lid Placing)
Conveyor-: 3 Meter Long
Contact Parts-: Stainless Steel 316 Grade
Nozzles-: Drip Free
Fill Accuracy-: +/-0.5%
Controller-: PLC
Compressed Air-: 2Kg
Power Source-: 220V 50Hz
Power Supply-: 2KW
Machine Dimension (Wooden Case)-: 3000mmLx700mmWx1800mmH
Machine Weight -: 450Kg
Production Capacity -: 200 Tins Per Hour ( Approx.)
Technical APPLICATION
15Kg Oil tin filling machine is suitable to fill and seal 15kg oil tins of mustard oil, edible oil, refined oil, vegetable oil, sunflower oil etc, Online filler with cap sealing unit 15Kg Oil filling also suitable to fill 5lit-20lit oil jars, containers filling. This machine is also called as oil tin packing machine, 15kg oil tin packing machine, 15kg oil tin filler, oil tin packing machinery etc.
Product Unit Type -: 1 SET
