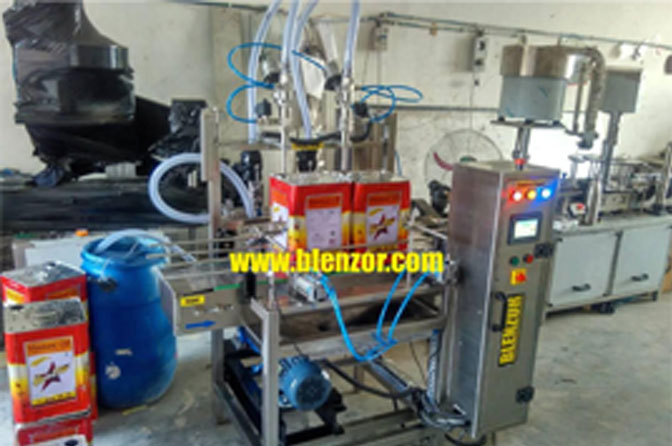

15Kg Oil Tin Filling Machine

Product View

Blenzor Machine

Product Video

Product Description

TECHNICAL DETAILS

MODEL NO.TFM-2000

Suitable for

Ghee/Oil

Filling Range

5Kg-15Kg

Filler

4 Head Digital Filler

Sealing

Online (Manual Lid Placing)

Conveyor

4 Meter Long

Contact Parts/Conveyor

Stainless Steel 304 Grade

Nozzles

Locking Diving Type

Fill Accuracy

+/-0.5%

Additional Feature

No-Tin-No-Fill sensor/Locking Diving Nozzles

Controller

PLC

Compressed Air

5Kg

Power Source

220V 50Hz

Power Supply

0.7KW

Machine Dimension (Wooden Case)

4000mmLx700mmWx1800mmH

Machine Weight

450Kg

Production Capacity

300-400 Tins Per Hour ( Approx.)

15Kg Oil tin filling machine is suitable to fill and seal 15kg oil tins of mustard oil,edible oil,refined oil, vegitable oil also lubricant and engine motor oil filling. Online filler with cap sealing unit 15Kg Oil Filling also suitable to fill 5lit-20lit oil jars,containers filling.

Technical feature :

PLC Controlled (Delta Make).

Filling mechanism Mechanical Pneumatic operated.

Contact Parts: SS 304/ SS316.

All Electric components: Schneider make.

Display: Delta make 5.6’’ (Color).

Main Stand: MS Fabricated.

Conveyor: 7 feet long. SS make.

Turn Table: 2 Nos. (SS make

Power: 220V,single Phase, 380 V 3 Phase, 110V single phase

Dimension: 3000mmL x 800mm W x 1000mmH

Weight : 800Kg
