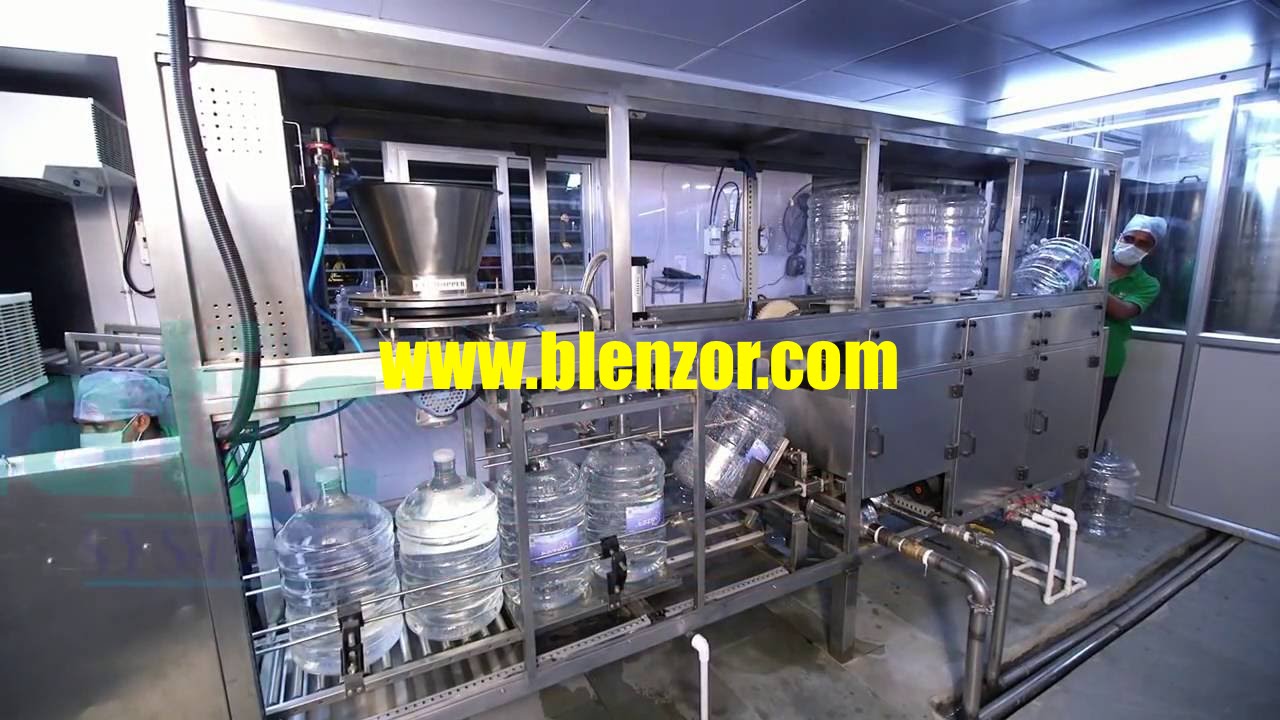

Automatic Jar Washing-Filling-Capping Machine (Linear Line)



Automatic Jar Washing-Filling-Capping Machine (Linear Line)
Complies with Inner-Outer Wash
Online Filler
Online Capper with chute
10 Feet Long SS Slat Conveyor (Motor Driven)
Pneumatic Stopper Mechanism
SS316 Contact Parts
Complete Stainess Steel Covering.

TECHNICAL SPECS:
Features Specifications:
Production capacity: 150/300 jars/hour
Suitable for Jar capacity: from 11.3L (3 gallons) to 18.9L (5 gallons)
Jar dimensions (mm): 270 x 490 x 56/230 x 420 x 56
Cap dimensions (mm): 58 x 40 (with tip-in brush of 18 in length and 7.5 in width)
Rated input: 2.8kW
Driving motor: 0.37kW
Sterilize washing pump: 0.55 x 3=1.65kW
Pure water washing/filling pump: 0.55kW
Capping motor: 0.06kW
Ultraviolet sterilizing light: 20W + 20W=40W
Power voltage: AC 240V/110V/60Hz or 380V/220V/50Hz
Rated amperage: 12A
Size: 3250mm x 730mm x 1550mm
Net weight: 230kg
Air pressure supply: 0.1m3, 0.17m3/min, 0.7Mpa/cm3
Water supply: 3m3/h
The details for washing stations: (with 6kW heaters in the washing tanks)
There equipped with heating station for supply hot water rinsing
There equipped with rinsing water temperature display and controller
There equipped with bottled water counter to display (1. quantity since
installation, 2.quantity since every day)
There are totally 5 washing stations: (the washing stations can be designed
according to customers requirements)
Sterilizing water wash inside and outside/Sterilizing water wash inside
Drying function
Pure water wash inside and outside/pure water wash inside

SPEED-150 & 300 Jars Per Hour


Capper

Capper
Conveyor
Conveyor

Washing Unit
Washing Unit




Automatic Jar Washing-Filling-Capping Machine (Linear Line)
