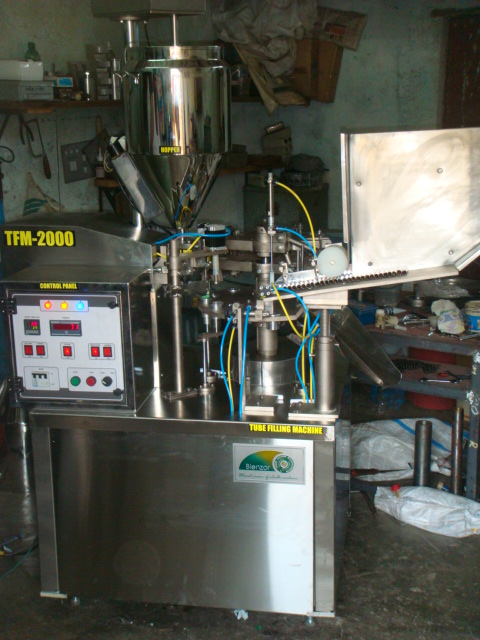

Automatic Tube Filling Machine



Product Video

Product Description

TECHNICAL DETAILS

MODEL NO.TFM-500

Suitable for

Lami/Plastic Tubes- 5gm-100gm

Max Tube Dia

60mm

Tube Loading

Automatic

Tube Orientation

Sensographic

Machine Model

Rotary with Geneva Indexer & 12 Pockets

Filler

Single Head Piston Base with 70Lit.Hopper

Sealer

Hot Jaw Pneumatic with Temp. Controller

Tube Trimming

Pneumatic

Contact Parts

SS304

Power Source

220V 50Hz

Power Supply

3KW

Air Supply

4-5 Kg

Machine Dimension (Wooden Case)

1200mmLx1200mmWx2000mmH

Machine Weight

600Kg

Production Capacity

25-30 Tubes Per Minute

Tube filling machine is automatic tube filling machine.

Tube filling machine is available in semi-automatic tube filling machine also

Tube filling machine is widely used to fill and seal tubes with viscouse liquids filling ,paste filling, cream filling, tooth paste filling,cosmetic cream filling,gel filling,adhesive filling,ointment filling.

Tube filling machineis high speed & medium speed tube filling machine series.

Tube filler is suitable for Aluminium, Lami, Plastic, LDPE, HDPE etc. tubes.

Suiatble to fill 0.5hm-300gm of Ointments, Liquids, Pastes, Creams, Honey, Adhesives, Lotions, Balms, Cosmetics etc.

Available in Single Nozzle, double Nozzle for different output.

Sealing- Hot Jaw Sealing, Crimping etc.

Rotary tube filling machine and linear tube filling machine are 2 major types of BLENZOR

Drip free filling is main feature of our tube filling machine

The pump unit has a vertical dosing system, which aids in easy suction

Bottom-up filling coupled with shut-off nozzle ensures accurate & clean fill without air entrapment Indexer is absolutely smooth.

Tool-less adjustments coupled with faster reproduction of settings (aided by position indicators and tri-clover fittings) make changeover quite effortless.

Product level sensor, centralised lubrication and a host of safety features like detection of reverse tube, jammed tube, air pressure drop etc. are part of basic machine

Optional equipment

Saddle fold

Multi-colour filling

Designer seal in plastic tubes

Gas flushing before & after filling

Product Key Features

Transmission portion on the worktable underside , security Reliable , sanitation.

Filling seal tail part build in worktable, half seal no static visible window,easy to observe easy to operate easy to Maintenance.

Adopt PLC Control.

The dish turn around is using cam drive,high speed,high precision.

Slanting suspension type tube warehouse,on the tube organization has the vacuum adsorption equipment, guarantees on the automatic tube accurately to enter the tube socket

The photoelectricity to the sign workstation, tube design using motor control located the correct position.

Fills the mouth to have breaks the material organization, guarantee filling the quality.

Seal use (Leister sirocco gun ) tube tail , inside calefaction , exterior using temperature cooling device.

Input code workstation automatically character code printing in technological requirement position.

Tube tail cut mode have the right angle or the fillet supplies the choice.

Remind Malfunction,remind haven't tube,the door opens motor automatism stop work , overloads stop work.

Count & ration Compact design and auto tube feed.

Driving part fully-closed. Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system. Tube washing and feeding conducted pneumatically, accurate and reliable.

Auto picketage effected by photoelectric inductance. Easy adjustment and dismantling Intelligent temp control and cooling system makes operation easy and sealing reliable. With easy and quick adjustment, it is suitable for using multiple kinds of soft tubes for filling.

The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to CMP for medicine manufacture. With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed. Overload protection provided.

Use: The Model RGNF-30D is suitable for filling all kinds of pasty and high viscous fluid and the materials alike into large diameter plastic and composite tubes and then internally heating tubes, sealing and printing lot number and date. It is used in the industries of pharmaceutics, foodstuff, cosmetic and bond and so on.

Parameter

Item Parameter

Filling volume 5-250ml, Adjustable

Productive speed 1800-2400 Tubes/hour., Adjustable

Hopper volume 40L

Filling accuracy <=±1

Tube size 210mm(Max. length)

Tube dia. 10-50 mm

Power supply 380/220 (Optional)

Elec. motor 1.1KW

Hot heating power 3.0kw

Operating air pressure 0.5-0.7 MPa

External size 1900×850×1900(mm)

Weight About 850 Kg

Producing capability: 40-120 Tubes/Min
