Paste Filling Machine



Product Video

Product Description

TECHNICAL DETAILS

MODEL NO.MPF-400

Fill Size

50gm-1000gm

Filling in

Bottles, Cans, Pouches

Filler

Motor Driven Piston with 70Lit Hopper

Contact Parts

Stainless Steel 304 Grade

Air Supply

2Kg

Power Source

220V 50Hz

Power Supply

1HP/0.7KW

Compressed Air

N/A

Machine Dimension

800mmLx600mmWx2000mmH (300Kg)

Production Capacity

5-15 Fills Per Minute

Product Application

Honey : honey filling, vinger filling, fruit syrup filling

Food Pastes: jingerpaste filling, garlic paste filling, food paste filling, vinger filling, juice filling, pulp filling,ghee filling, curd filling, dahi filling, icecream filling, butter filling, cake paste filling, mayonnaise filling, yeast filling

Ointment: ointment filling, gum filling, syrup filling

Adhesives: paint filling,adhesive filling, fevicol filling, paste solution filling, rubber adhesive filling, resin filling, hardner filling, silcon sealant filling

Creams: cosmetic cream filling,shampoo filling hair lotion filling,shaving cream filling, mouth freshner filling, hand wash filling, face wash filling, tooth paste filling

Balms: lotion filling, balm filling

Filling in : bottles, jars, containers, tubes, pouches, tubs, laminates

Suitable fill 1gm-5Kg of Paste, Creams, Blams, Ointment, Shampoo, Adhesives, Paints, Food Pastes, Pickles in bottles,Jars, Containers, Pouches.

Heavy Duty Piston type filler with accurate weighing

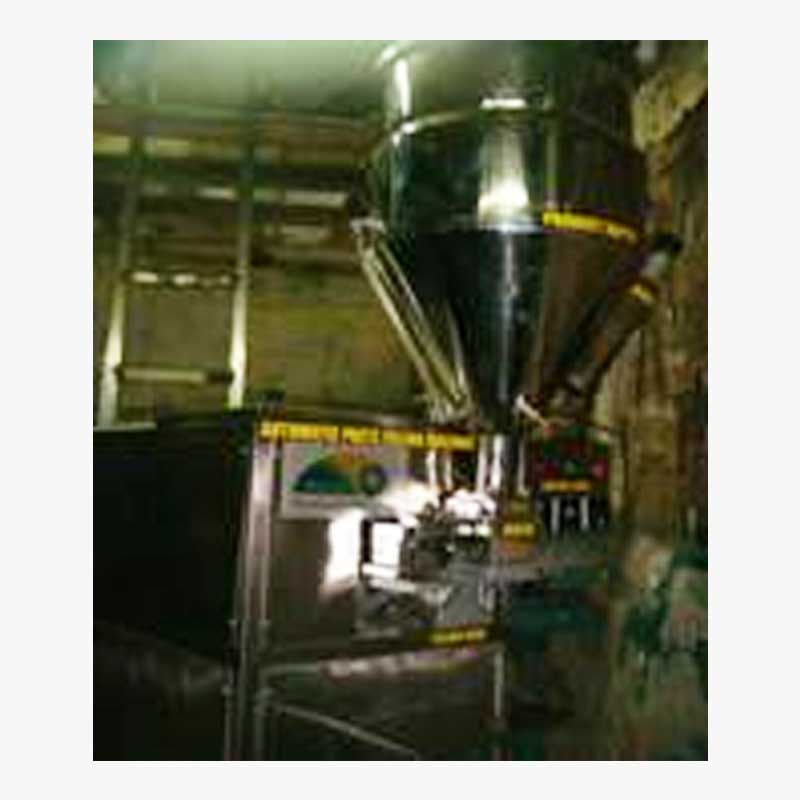

Also available in Hot jacketed filling unit for hot filling

Available in Single Head-Double  filling nozzles

Can be add conveyor with stopper for automatic handling

Volumetric filling-machines

Drip free nozzles for clean cut off uring filling

Stainless Steel 304 or 316 grade contact parts

25Kg product storage hopper

Heating arrangement in hopper for hot filling process

Easy adjstment of filling by hand screw

Foot Operated or Auto set operation

+/-1% filling accuracy

Can be synchronized with conveyor and stopper

Power:220V, Single Phase/ 2KW

Speed: 15-50 Bottles/Min
