Carbonated Drink Filling Machine

Product View

Blenzor Machine

Product Video

Product Description

LIST OF MACHINES

Suitable for- Soda,Soft Drink,Carbonated Drink

Filling Range- 200ml-2Lit

Bottle type- PET or Glass

Cap type- Screw-on or Crown

BOTTLE WASHING AND WATER FILTRATION UNIT

12 Bottle Rinser unit for washing PET bottles

Ultra Violet Water Filtration unit complete with 10 micron filter, activated carbon filter and 2 nos. UV lamps suitable for 500LPH

WATER CHILLING UNIT

Water Chilling Plant complete with Capacity of 750 LPH

SYRUP PREPARATION EQUIPMENT

Motorized Liquid Stirrer complete with capacity of 100 liters at a time with ½ HP motor

Tank with capacity of 125Lit. with three legs and bottom drain

SODA/SOFT DRINK WATER MAKING UNIT

Syrup Dosing machine complete with 0.5 HP Motor and with output quantity variable from 50 ml to 300 ml with two pumps and production 28 Bottles/Minute

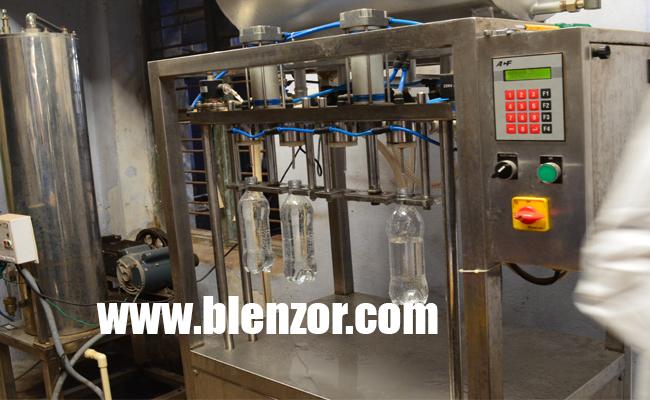

2 Head Filling Machine-

Soda/soft drink making machine complete with Counter Pressure Filling system suitable for filling 2 PET bottles of size max. 1.5 ltrs. at a time with suitable Carbonator, Pressure regulating valve, Pump and I HP motor and PLC

PET Bottle Capping machine pneumatically operated with Die suitable for 28 mm plastic caps

Air Compressor complete with 2HP Motor and 110Lit. tank with FRL & PU tube (5 Meter Long)

PACKING AND BATCH CODING UNIT

Shrink Tunnel for shrinking labels on PET bottles with tunnel size 12” width x 15” height with suitable heaters, temperature sensor, controller and digital indicator (Shrink film to be wrapped around the bottles placed in a cardboard tray has to be done manually)

Batch Coding Machine - Hand Operated

Hot Air Gun - For Label Sleeve Shrinking

Ink Jet Coder with Conveyor (Optional)

Production Capacity- 500 Bottles Per Hour

Carbonated drink filling machine is suitable to fill all types of soda, carbonated drinks, beverages, soft drinks in glass as well as pet bottles.

Machines Consisted of :

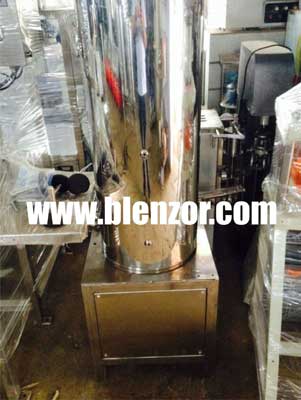

A. Carbonator

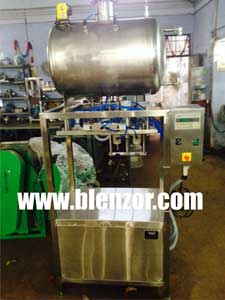

B. 2Head Filler

C. Capper

Sailent Features :

The unit is made compact, enclosed in stainless steel elegantly mate / mirror finished body.

The unit consists of S.S. filling nozzle , S.S. Nozzles.

Low Power Consumption

Operator friendly and low maintenance machine

Elegant and easy reach on / off switch for total control on operation.

Suitable For 200ml to 2Ltr

Technical Specifications :

No. Of Filling Nozzles (Head)

2 Head.

Electric Connections

1 Electric motor for Main Drive

OutPut

5000 Bottle Per Day

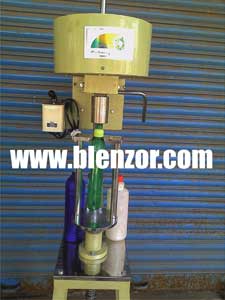

Capper :

There is manual work for collecting the bottle from filling machine.

You have to cap placement on bottle manually.

Sealing cam goes downward and crimps the cap automatically.

Technical Specifications :

Change in Cap size

Extra capper tool

Change in Bottle Diameter

No Change. Only Guide Setting needed.

Power Required

0.5 HP, 220 Volt, and 1440 RPM

Semi Automatic Crowning Machine :

There is manual work for collecting the bottle from filling machine.

Manually Put the cap on bottle

200-300ml Soda/soft drink bottle.
