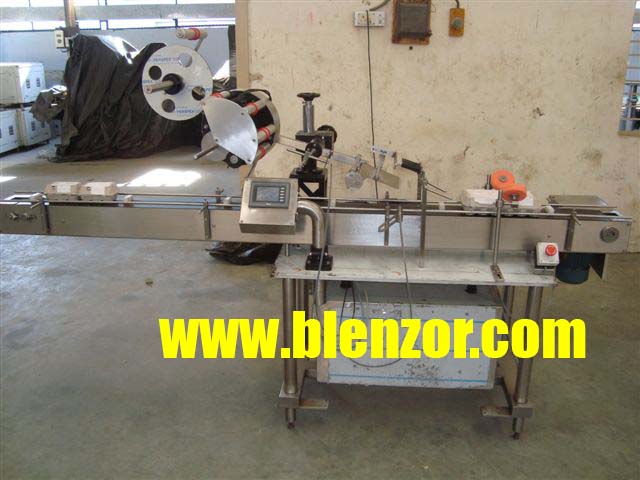

Label Dispensing Machine

Product View

Blenzor Machine

Product Video

Product Description

TECHNICAL DETAILS

MODEL NO.SLM

Suitable for

Flat/Oval/Round Surface

Max Label Size

150mmx150mm

Labeling

Stepper Motor Driven

Conveyor

2 Meter Long

Labeler

Roll Formed Sticker Wrap Arround

Conveyor Drive

0.5HP Bonfiglioli-Italy/VFD

Power Source

220V 50Hz

Power Supply

1.2KW

Contact Parts

Stainless Steel 304 Grade

Covers

Stainless Steel

Machine Weight

400Kg

Machine Dimension

2000mmLx600mmWx 1200mmH

Packing

Wooden Case

Production Capacity

40-50 Pieces Per Minute

Label dispensing machine ,also known as sticker labelling machine is widely used for applying the labels on bottles.

Label applicator is majorly applicable for round bottle labelling,flat bottle labelling, in wine bottles,food bottles,juice bottles

Label dispensing machine is category of labelling machine

Single side labelling, round bottle labelling, double side labelling can be done on same machine.

Label applicator is accurate label applying equipement.

Sticker Labeling machine is perfect label applicator for applying self adhesive labelling on bottles.

Glass bottle labelling can be accurately managed by labelling machine or label applicator

Bottle Labeling machine can be used for any type of bottles.

Label dispensing machine is widely used for label fixing on tray labelling,box labelling,bottle labelling

Vial labelling,ampoule labelling also majorely done on label dispening machine

BLENZOR-LBL-T-250 is Top side sticker Labeling machine suitable for applying sticker labels on Bottles, Trays, cartons, Boxes, Objects etc.

Technical specification:

VOLTAGE - 110/220 VAC 50/60 HZ 1 PHASE

POWER - 400 VA

LABEL SIZE - H 120mm x L 300mm MAX

CONVEYOR WIDTH - 160 mm MAX

DISPENSING SPEED - 16 m/min

DRIVE - 2 PHASE STEPPER MOTOR

Material: All Stainless Steel and Anodized Aluminum Construction.

Control System: Optional Stainless Steel Platform W/Castor L 510mm X W 600mm X H 550mm .

Product Features

Labeling counter: Keep tracks of the quantity of products processed by the machine

Pre-set: a quantity can be preset for a production batch and the machine will automatically stop as the quantity is attained.

Label position set: used to delay label application and adjust label position by simply touching the control screen.

Five memory slots: for fast and easy label set-up.

Printer interface: Future installation is accommodated by the printer ports which provides timing controls for flexibility and clear quality prints.

Stainless steel and anodized hardened aluminum alloys are employed to the structural design for a durable and stable machine

Stepper motors are used to provide fast and accurate labeling.

Wide application range that can handle up to 180mm packages.

Modular design concepts for fast and simple maintenance. Flexible enough to handle production schedule changes with simple adjustments for rapid changeover.
