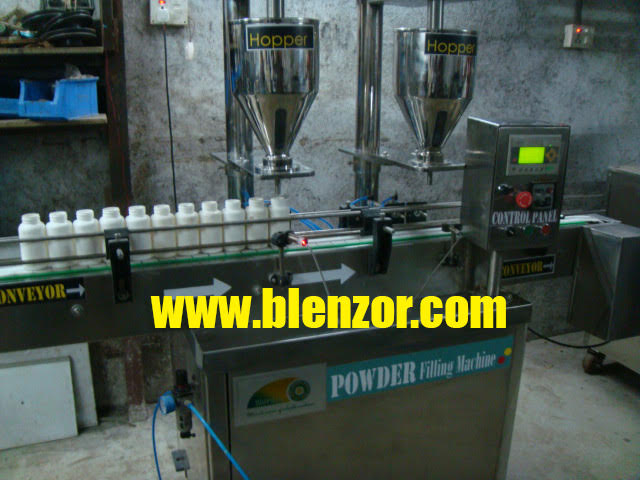

Powder Filling Machine

Product View

Blenzor Machine

Product Video

Product Description

TECHNICAL DETAILS

MODEL NO.TPF-1000

Suitable for

Powders

Filling Range

50gm-5000gm

Filler

Double Head Auger Filler with Clutch Break

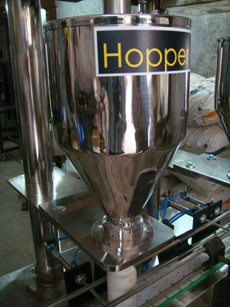

Hopper

25kg x 2 Nos.

Conveyor

8 Feet Long SS Slat Chain

Facility

No Bottle-No Fill Sensor

Contact Parts

SS304

Compressed Air

5Kg

Power Source

220V 50Hz

Power Supply

2.1KW

Machine Dimension (Wooden Case)

2400mmLx 800mmWx2000mmH

Machine Weight

600Kg

Production Capacity

10-30 Bottles Per Minute ( Approx.)

Powder filling machine is majorely used for filling free flowing powders and non free flowing powders.
Powder filling machine also known as auger filler and powder dozing machine which is suitable to fill 1gm to 5000gm of any powder in bottles, cans, jars, tubs.
Powder filling is automatic filling machine runs of volumetric filling principle.
Weighing & filling of powders is optional feature of powder filler.
Powder filling machine is widely used for milk powder filling, bottle filling, jar filling, container filling,cosmetic powder filling,chemicalpowder filling, talcum filling, juice powder filling, salt filling, sugar filling, nutrition powder filling, can filling, food powder filling.

Chemical powder can be filled with powder filling machine.
Powder filling equipments are widely used to deposite accurate powder in bottle filling, pouch filling, container filling.

Powder filler is also available in servo motor filling for accurate filling of powder.
Milk powder filling ,cocoa milk powder filling  can be easily handled on powder filling machine.
Powder filling equipments are widely used to measure and fill accurate amount of powder in sachets, bottles, jars, tubs etc.

Powder fillers are widely used for any type of powder with auger filling and cup filling system.

Filling by powder filler or auger filler is completely drip free and accurate in weight.
Powder filling machines are mostly used in pharmaceutical filling & food filling as a filler or dispenser.

Desired speed can be achieved by powder filling machine by adding filling heads.
Major auger fillers are available in  single or double heads.
Powder Filling machine can produce 30-50 bottles per minute by adding multiple heads to filler head.
Powder packaging machine can be difined as powder filling equipment and accurate powder dozing machinery.

BLENZOR-PFL-1000 is Automatic Powder Filling Machine suitable for filling 1gm-5Kg of powder in bottles, Jars, Containers. Auger powder filling machine, Clutch-Break Mechanism (Optional Servo driven) Available in Single Head Double Head filling nozzles.
• This automatic powder filling equipment and dry powder filling machine has 4 Feet Belt Conveyor
• Accurate Weighing with Weigh scale bellow filling nozzles
• Pneumatic Bottle Stoppers
• 2HP-Mechanical Motor drive
• Variable speed conveyor drive

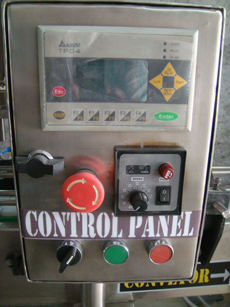

• PLC Based Control System
• +/-1% filling accuracy
• SS 304/316 Contact parts
• MS/SS Covers
• The automatic powder filling equipment is available in GMP Model
• Speed: 30-60 Bottles / Min

Product Applications

BLENZOR-PFL-1000 is Automatic Powder Filling Machine suitable for filling 1gm-5Kg of powder in bottles, Jars, Containers. Auger powder filling machine, Clutch-Break Mechanism (Optional Servo driven) Available in Single Head Double Head filling nozzles.

This automatic powder filling equipment and dry powder filling machine has 4 Feet Belt Conveyor

Accurate Weighing with Weigh scale bellow filling nozzles

Pneumatic Bottle Stoppers

2HP-Mechanical Motor drive

Variable speed conveyor drive

PLC Based Control System

+/-1% filling accuracy

SS 304/316 Contact parts

MS/SS Covers

The automatic powder filling equipment is available in GMP Model

Speed: 30-60 Bottles / Min
